VCH 8830 HANDSTAUBSAUGER, 14,4V POWE - Hand vacuum cleaner GRUNDIG - Free user manual and instructions

Brand	GRUNDIG
Model	VCH 8830
Product type	Cordless hand vacuum cleaner
Battery voltage	14.4 V
Battery type	Rechargeable Nickel-Metal Hydride (NiMH)
Runtime	Approx. 12 minutes
Charging time (first use)	20 hours
Maximum recommended charging time	16 hours
Charger power supply	230 V, 50 Hz (mains) / 22 V DC (charging station)
Filter	Washable with Microban® hygienic protection
Included accessories	Universal brush, motorized brush, crevice tool, fabric brush, 3 extension tubes, wall charging station, power adapter, spare Microban® filter
Special features	Integrated Microban® hygienic protection (reduces up to 99.9% of bacteria, inhibits odors)
Use	Household use only (dry vacuuming)
Maintenance	Container and filter washable with soapy water; must be completely dry
Safety	Do not use on wet surfaces, do not vacuum ash or cigarette butts, do not use without filter, do not open the appliance
Warranty	Valid only for household use; warranty void if used commercially

Frequently Asked Questions - VCH 8830 HANDSTAUBSAUGER, 14,4V POWE GRUNDIG

How do I charge my Grundig VCH 8830 vacuum cleaner?

Place the vacuum cleaner on the wall charging station until the electrical contacts touch. Plug the power adapter into a 230 V socket. The red light turns on. The first charge must last 20 hours. Do not charge for more than 16 hours.

Can I use the vacuum cleaner on wet surfaces?

No, the vacuum cleaner is designed only for dry cleaning. Never use it on wet surfaces or to vacuum liquids; this could damage the appliance.

How do I empty the dust container?

Hold the vacuum cleaner vertically with the suction opening facing down. Press the button (D) and remove the container from the bottom. Remove the filter, empty the container, wash it with soapy water, and dry it completely before reinserting.

How do I clean the filter?

Brush the filter over a trash can. You can also wash it with warm soapy water. Do not machine wash. Let it dry completely before reuse.

What should I do if the vacuum cleaner does not charge?

Check that the power adapter is properly plugged in and the charging station is correctly fixed. Ensure the charging contacts are clean and in contact. If the problem persists, contact an authorized technician.

What accessories are included with the vacuum cleaner?

The vacuum cleaner comes with a universal brush, motorized brush, crevice tool, fabric brush, three extension tubes, a wall charging station, a power adapter, and a spare Microban® filter.

What is Microban® protection?

Microban® is a technology integrated into the container and filter that inhibits the growth of microorganisms, reduces up to 99.9% of bacteria, and prevents bad odors. It is odorless, colorless, and tasteless.

How do I install the charging station on the wall?

Choose a location near a 230 V socket, about 30 cm from the floor, away from direct sunlight and radiators. Drill two holes, insert wall plugs, screw in the screws, then hang the station.

What is the runtime of the vacuum cleaner?

The vacuum cleaner runs for about 12 minutes after a full charge. To extend battery life, do not recharge after every use; wait until the battery is fully discharged.

Can I replace the battery myself?

No, opening the appliance by unauthorized persons voids the warranty. In case of a defective battery, have it replaced by an authorized technician.

USER MANUAL VCH 8830 HANDSTAUBSAUGER, 14,4V POWE GRUNDIG

Please note the following when starting up the appliance:

■ This appliance is intended for domestic use only. All guarantee claims expire if it is used for industrial or commercial purposes.
■ To avoid damage and risks due to improper use, please read the instructions for use and store in a safe place.
■ Do not use it to clean wet surfaces.
- Do not use the appliance in a wet environment.
■ Never hold the appliance in water or other liquids.
- Keep the appliance and accessories away from your eyes and ears while the appliance is in use.
■ The appliance is intended to be used for vacuuming dirt and dust particles. Do not use it to vacuum large objects which block the appliance and can damage it as a result.
- Do not sweep up cigarette butts, fireplace ashes or matchsticks. This could cause a fire.
■ Never use the appliance without the dust container and filter.
- Do not use the appliance if the air inlet and ventilation slits are blocked. Keep the air inlet and ventilation slits free at all times of dust, hairs and other elements which could block or prevent the air flow.

If using with the motorised brush, ensure you constantly move the brush backwards and forwards and do not allow it to rotate too long on a stain.
■ The motorised brush may only be cleaned if it is not connected to the appliance.
■ Never start up the appliance if it shows signs of visible damage. This also applies to an accidentally wetten appliance. In such cases, contact your local specialist store.
■ Use the mains adapter supplied only to charge the appliance.
- Keep the appliance out of reach of children.
■ Store the appliance in a dry and safe environment only.
The device may not be used by the following people, including children: those with limited physical, sensory or mental capabilities and also those with a lack of experience and knowledge. This does not apply to the latter if they were instructed in the use of the device or if they use it under the supervision of a person responsible for safety. Children should always be supervised to ensure that they do not play with the device.
■ Never open up the appliance. All rights to claim under the guarantee are invalidated for damage caused by improper interventions.

Controls and component parts

Fold out page 2 to clearly see the diagram at all times.

A Dust container.
B Filter (inside the dust container).
C Vacuum intake.
D Pushbutton for opening the dust container (Microban® hygiene protection container).
E Charging indicator (LED).
F Switch for switching on and off.
G Handle.
H Motor housing.
Compartment for the rechargeable battery (underside of the appliance).

Accessories

J Charging station for mounting on the wall with mains adapter (see page 14).
K Universal vacuum brush.
L Motorised brush.
M Narrow vacuum tube.

REDUCES BACTERIA Up to 99,9% of bacteria are effectively eliminated. Microban® active hygiene protection the built in Microban® hygiene protection safeguards against unpleasant odours. REDUCES ODOURS

N Upholstery brush.
3 Extension tubes.
P Microban® hygiene protection replacement filter.

Dear customer,

We hope you enjoy using your new GRUNDIG handheld vacuum cleaner with its built-in Microban® hygiene protection.

Special features

- Microban® hygiene protection in dust container and filter.

What is Microban®?

Microban ^® is odourless, tasteless and colourless.

Microban ^® inhibits the growth of microorganisms by permeating the cell walls and destroying the micro-organisms. These cells are then no longer able to reproduce and growth is prohibited.

Grundig offers an effective way to clean floors hygienically with the impressive technology from Microban ^® . The Grundig dust filter is equipped with the integrated Microban ^® hygiene protection. This even inhibits the spread of tiny microscopic particles including house mites, pollen and dust.

Dangerous bacteria can hardly survive with the integrated Microban® hygiene protection in dust container and filter.

Microban® technology has been tested in independent laboratories and certified, thus making a significant contribution towards a healthier household.

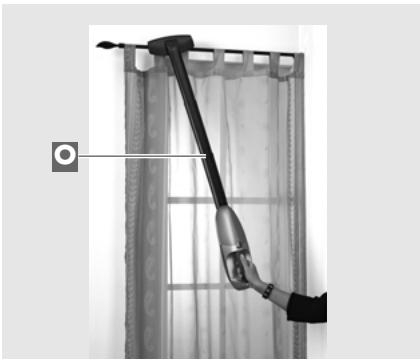

Floor brush

Use the universal vacuum brush K together with the three extension tubes O to clean small floor areas or curtains.

1 Switch off the appliance.
2 Firmly push an extension tube into the appliance's vacuum intake C.
3 Depending on your requirements, insert one or two extension tubes into the first extension tube.
4 Push the universal vacuum brush K onto the bottom extension tube.

Close-up of a mechanical device with a lever extending over a curtain window, no visible text or symbols

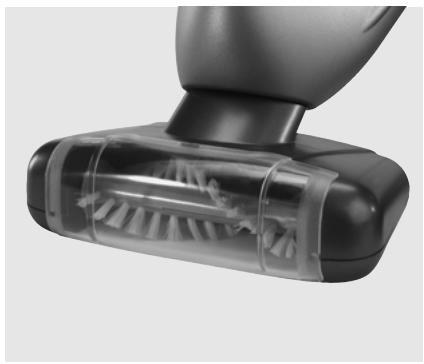

Motorised brush

Use the motorised brush L to clean short pile carpets or carpeting. It is particularly suitable for removing animal hairs. Never use the motorised brush on long hair/deep pile carpets.

1 Switch off the appliance.
2 Firmly push the motorised brush into the appliance's vacuum intake C.

Note

■ When you install the motorised brush ensure the contacts of the brush touch the contacts in the appliance's vacuum intake.

Important

■ Do not touch the motorised brush during use. Risk of injuries.
If using with the motorised brush, ensure you constantly move the brush backwards and forwards and do not allow it to rotate too long on a stain.

Close-up of a black handheld vacuum cleaner with transparent plastic casing (no visible text or symbols)

Narrow vacuum tube and upholstery brush

Use the narrow vacuum tube M to clean places difficult to reach, e.g. crevices and corners.

Use the upholstery brush N to clean small areas of upholstery.

1 Switch off the appliance.
2 Firmly push the narrow vacuum tube or the upholstery brush into the appliance's vacuum intake C.

Two black hair blower tools shown from different angles (no text or symbols visible)

Charging station for mounting on a wall

Fix the charging station J to a wall.

1 Ensure the place you have chosen to install the charger is free of concealed electric cables, water or gas pipes.
2 Choose an installation location near a wall socket (230 V, 50 Hz) for connecting the mains adapter.

Important

• Do not install the charging station anywhere where it is exposed to direct sunlight or near a heater/radiator. Do not install the charger outdoors.
  3 Choose a suitable drill bit for the screws and wall plugs supplied.
  4 Drill two holes approx 30 cm above the floor, push in a wall plug and screw in the screws, then hang up the charging station.

Close-up of a modern vacuum cleaner with black handle and gray casing (no visible text or symbols)

If run with the installed rechargeable nickel metal hydride batteries, use the charging station with the mains adapter as a charger.

Charging

If run with the installed rechargeable nickel metal hydride batteries, use the charging station with the mains adapter as a charger.

1 Remove the accessory used.
2 Insert the appliance in the charging station so that it precisely fits.
– The charging contacts of the appliance and the charging station touch each other.
3 Plug the mains adapter into the wall socket.
- The charging process begins, the charging indicator E lights up red.
- The charging indicator remains lit until the appliance is removed from the charging station or the mains adapter plug is disconnected.

Note

■ Fully charge the batteries before using for the first time or if the batteries have not been used for a long time (20 hours).

- Charge the appliance at room temperature. Lower or higher temperatures have a negative effect on the life of the batteries.

■ The ambient temperature should be between 5^ C and 40^ C.

■ When fully charged, the appliance works for around 12 minutes. It is not advisable to charge the batteries after every use, especially if you do not use the appliance for the full 12 minutes. Only charge the batteries when they are completely discharged. This increases their life. Do not charge it every day.

The device does not end the charging process automatically. Therefore, remove the device from the charging unit after 16 hours or disconnect the power supply unit from the socket. In this way, you save electricity.

Switching on and off

1 Remove the appliance from the charging station J.
2 Depending on the requirements, insert one of the accessories into the appliance's vacuum intake C.
3 Switch on the appliance by pushing forward switch F.
4 Switch off the appliance by pushing back switch F.
5 Remove the accessory used.

Empty dust container and clean

1 Hold the appliance vertically with the vacuum intake C facing downward.
2 Press pushbutton D and remove the dust container from underneath.
3 Remove the holder and filter B from the dust container.

Note

■ You can wash the filter from time to time with hot soapy water. After washing, allow the filter to completely dry.

4 Empty the dust container A, wash out and dry.

Note

• Allow the dust container to completely dry before you replace it in the appliance.
  5 Hold the appliance vertically facing upwards.
  6 Press button D.
  7 Replace the dust container A, ensure that both plug-in contacts of the dust container are precisely inserted in the correct position.
  8 Release button D. Ensure the latch clicks into place.

Cleaning and care

■ Do not clean the appliance with chemical cleaning agents. These could damage the housing
■ Clean the appliance with a soft cloth and mild soap only.
■ Brush out the filter over a dustbin.
■ The filter and the inside of the dust container can be washed with hot soapy water. Do not wash the filter in the washing machine.
■ The filter and dust container must be completely dry before they are used again.
■ Before using, ensure the motorised brush is free of hairs and fibres.

Replace the rechargeable batteries

If damaged, the appliance may only be opened by an authorised technician.

Environmental information

■ Never throw the rechargeable batteries in the domestic waste. Used batteries must be placed in the used battery collection containers in shops or handed in to public bodies responsible for waste disposal.

Environmental information

This product has been made from high-quality materials and parts, which are suitable for recycling and can be reused.

Therefore, at the end of its life, the product must not be disposed of in the normal domestic waste but must be taken to a collection point for recycling electrical and electronic appliances. This is indicated by the following symbol on the product, in the instructions for use or on the packaging.

Please contact your local authority to find out where your local collection points are.

Reusing and recycling old appliances is an important contribution to protecting our environment.

Technical specifications

This product fulfils the European Directives 2004/108/EG and 2006/95/EG.

Serial number

GMM 2100

Power supply

230 V, 50 Hz at the wall socket DC 22 V at the charging station Rechargeable batteries: Nickel metal hydride

Protection class

III

Ni-Mh

Subject to technical and visual changes!
